Cargo Container 40T 3 Axle Skeleton Trailer

Container 3 Axle Skeletal Trailer
  • Item NO.:

    WSK3-4001
  • Payment:

    L/C, T/T, Western Union
  • Product Origin:

    China
  • Shipping Port:

    Fuzhou, Xiamen, Fujian
  • Lead Time:

    About 30 Working Days
  • Order(MOQ):

    1

3 Axke Skeleton Trailer Dimension:


> Tare Weight: 5800kg

> Trailer Payload: 40000kg

> Total Weight: 45800kg

> Overall Length: 12400mm

> Overall Width: 2480mm

> Overall Height: 1410mm

> Wheel track: 1840mm

> Wheelbase: 7545mm+1310mm+1310mm

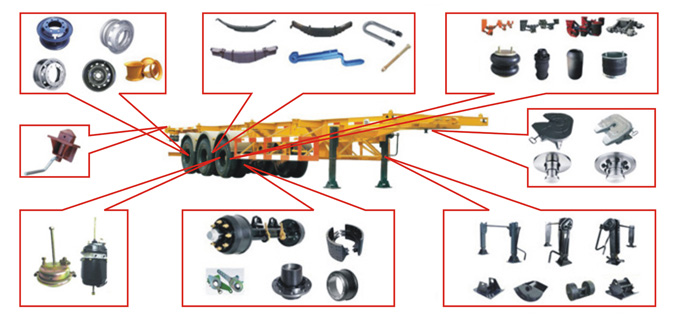

40T 3 Axle Skeleton Trailer Specification:


1.Main Frame:Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic

Submerged-Arc processes;500mm Height, Top Flange 14mm, width 140mm; Middle Flange 6mm; Bottom Flange

16mm, width 140mm.

2.Axle: Three units WONDEE Brand 13T Axle

3.Suspension: WONDEE brand 3-axle mechanical suspension, American design

4.Leaf Spring: Six sets of reliable WONDEE brand leaf spring, 90*16mm or 100*12mm

5.King Pin: one unit of 3.5" bolt-in kingpin, standard

6.Landing Gear: Two-speed, manual operation, heavy duty WONDEE Brand linked landing gear

7.Wheel Rim: 12 units of 8.25*22.5 wheel rim

8.Tire: 12 units tire

9.Twist Lock: Twelve nos. four nos are fasten mode, eight nos are up-down mode, of ISO twist lock for 2x20ft

or 1x40ft container, central locks can be laid down.

10.Pneumatic Braking System Two units of WABCO RE 6 relay valve; four units of T30/30 spring brake chamber;

two units T30 brake chamber, two units of reliable local brand 40L air tank; two units of reliable local brand

standard coppery air-connector.

11.Electrical System One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; two sets of reliable, local brand

standard rear light, turn light, rear reflector, side light, side reflector etc. One set of WONDEE (brand) 6-core

standard Cable.

12.Painting: Sand blasting before painting; one coats of primer, anti-corrosion; two coat of finish painting; colour

advised by client

13.Accessory: One box with a set of standard trailer tool.

Wondee autoparts has the most 3 Axle Skeleton Trailer advanced equipment for special vehicle production, the

semi-trailer production lines were equipped with the famous domestic brands and imported accessories in the high

degree,such as: automatic welding, clamping machine, plate turner,gentry automatic submerged arc welding

machine,large shot blasting machine,bending machine,shears,presses and large-scale equipment and super

performacer testing equipment.A specialized line for container mass production,which including (side & top wall

plate line, bottom frame line,the front & rear part frame line,assembling line, pretreatment & painting line), Highly

standard inspection lab for quality control.
