Mini car rear view Camera for parking assistance

Mini Car rear view camera Night Vision for parking assistance No.SC-CAM-103
  • Item NO.:

    SC-CAM-103
  • Payment:

    TT/ Western Union /Money gram/Paypal
  • Market Price:

    10
  • Product Origin:

    Shenzhen,China
  • Color:

    Black Grey white
  • Shipping Port:

    Shenzhen
  • Order(MOQ):

    1


Mini Car parking accessoies rearview Camera with Night Vision and Waterproof

Products type:  Parking assistance

Model No.: SC-CAM-103

Funtion:4 night vision LED lamp

MOQ:60pcs



Applications for car models:

Acura,Aston Martin,Audi,Buick,Bugatti,Cadillac,Chevrolet,

Chrysler,Dodge,Ferrari,Ford,GMC,

Honda,Hummer,Hyundai,Infiniti,Jaguar

Jeep,Kia,Lamborghini,Land Rover,Lexus,Lincoln,Lotus,Maserati,Maybach,

Mazda,Mercedes Benz,Mercury,Mini,Mitsubishi,Nissan,Pontiac,Porsche,Ram,

Rolls Royce,Saab,Saturn,Scion,Shelby,Smart,Subaru,Suzuki,

Tesla,Toyota,Volkswagen,Volvo,Opel,renault,peugeot,skoda,yamaha,citroen,Daewoo,Peugeot,Renault,Ssangyong




Specification and functions for car rear view camera

1: Without display, standard video connections, with any TFT or LCD screen to connect to the application: GPS, dual-screen tablet with DVD, TV, sun visor screen, etc.;
2: To enter the reverse, the radar system into the work automatically, and automatically switch to reverse video, automatic wake-up function;
3: Configuration to install a borehole embedded in CMOS camera, infrared night vision function  Night  vision camera from 6 meters
4: Camera optional shape, such as: license plate  frame, hanging, etc.

5: The  camera, waterproof, shockproof, high temperature +80, -30 low-temperature-resistant,anti-jamming





 Specification



 Image Sensor

 OV7950, 1/3" COLOR

  Effective Pixels

  PAL: 628×586  NTSC: 510×496

  Protection Category

IP67-IP68

 Signal System

 NTSC/PAL

   Resolution

  380 TV Lines

 Lens Angle

 120 Degrees

 Shutter Speed

  60~1/15000 second

 S/N Ratio

 ≥48db

 Minimum Illumination

 1.0Lux

 Video Output

 1.0Vp-p, 75 OHM

  Water-proof

  IP68

 Power Supply

  DC12V ± 20%

 Main Function

  Night Vision LED lamp

 Current Consumption

 :≥80mA

 Operating Temperature

   -20℃ ~ 65℃

Package details



 Gift box size (1 unit)

26.5*20*6 cm

 QTY

60pcs/ctn

 Carton size

62.5 x 45 x 28.5cm

 G.W./ per unit

0.65kg

 G.W.  17KG/CTN

Accessories:



  1 X Car Rear View Camera
1 X Video Cable
1 X Power Cable

2 X Screw (for bracket mount)

1 x User manual










More features of Car rearview Camera








Size:L=250mm

(with Night Vision Function)

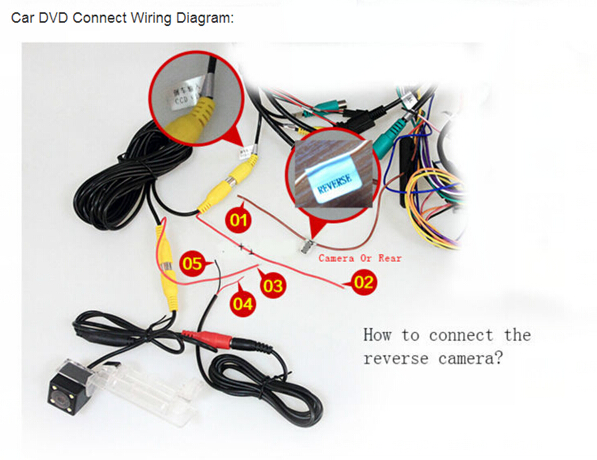

How to install in your cars















Drill  for installation

















 How to install when you buy from us?

Pls NOTE and  reference those steps or ask the professionals for help.Thanks .

01 Connect 02,
                                                                  03 and 04 connect the original car reversing light positive.

                                                     05 connect the priginal car reverse light negative.




More items for car headrest dvd player, pls check more product catalog or details link ass below:
