Big screen Quad Core Car DVD VW Tiguan 3G WIFI BT android4.4.4

 Specification and functions

   Feature

-OS:Android 4.4.4

-Nand(flash):16GB

-HD:1080P

-Storage memory :Samsung DDR3 1GB

-CPU:RK3188 1.6GHz Cortex A9 Quad core

-Chipset :U-BLXO G6010 ST (import by Swizerland)

-Multipoint capacitive screen

-Smart App Updates

-Screen Mirroring function for iPhone, android 4.4.4 and above.

-Change the theme by yourself

-34 difference car logo to match difference brand of car.

-Support original steering wheel control to work with the car DVD player.

-Support 3G wifi

-HD Resolution:1024x600

-Support ELM327 OBD2

 Screen

 -Screen size:10.1 inch high definition LCD monitor (7.0, 8.0, 10.1)

-Resolution:1024x600

-Touch screen function

-lmage Brightness/Contrast/Colore adjustable

 Bluetooth

-Built-in Bluetooth hands free call

-Support Bluetooth MP3 player function

(Notice: This function only can be realized when the phone supports Bluetooth audio output)

-Support Bluetooth phone book function

-Support Bluetooth connection for iPhone/iPhone 3G/iPhone 3S/iPhone4/iPhone4s/

iPhone5/iPhone5s/5c

 3G&WIFI

Support 3G module

Built-in Wifi Module

-CUP:A9 with Quad core

-Chipset: U-BLXO G6010 ST((import by Swizerland)

-Storage memory: Samsung DDR3 1GB

GPS port: COM2

-GPS Baud Rate:9600

-GPS dual zone function : work navigation while listen to the music at the same time.

-GPS language:

Japanese/Russian/Chinese/German/Italian/French/Arabic/greek/Portuguese/duth ect.

-GPS audio: work with front & rear speaker

Ipod / iPhone

 -Screen mirror :

-Support link with any delay, enable freely use the cell phone APP on the big size in-dash board

 USB/Micro SD

-Built-in USB port/Micro SD card Slot

-USB3.0 port: Support USB flash drive with maximum 32G compatibility

-Cannot support portable hard drive

-Micro SD card Slot: SD3.0 protocol standard SDHC, support 32GB as max

-Available video formats: MPEG-1/1/4,H264,H263,VC1,RV,RMVB,DivX

 DVD

-Compatible formats: DVD/DIVX/MP4/MP3/MP2/VCD

-Radio: Built-in radio tuner(30 preset stations)

-FM-(3*6):76.0MHz-108MHz

-AM(2*6):522-1620KHz

-Built-in RDS radio receiver function (Europe)

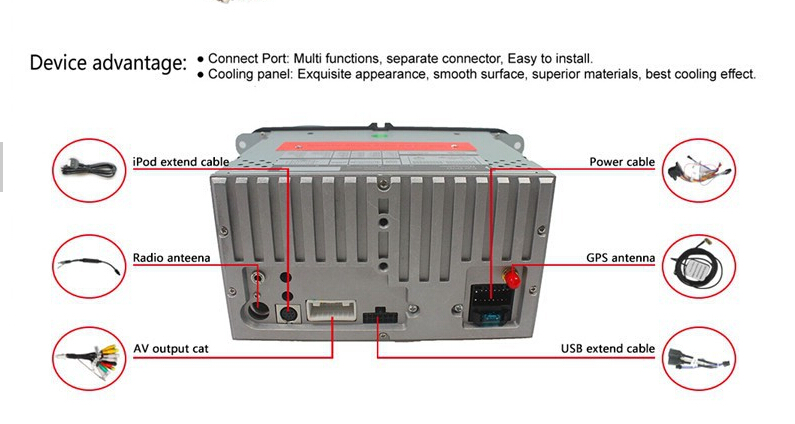

Input &Output:

1x Radio antenna input

1x GPS antenna input

1x external digital TV input

2x RCA Video output

1x Cam IN video input

1x video IN

1x RAC audio FR/FL/RR/RL/Sub woofer /Sub woofer 2 output AUX audio R/L input

Optional item

 -Rear View Camera

 -DVR

 -3G adapter

 -DVB-TBox MPEG2/MPEG4

 Accessories

1x power cable

1x GPS antenna

1x USB cable

1x RCA cable
