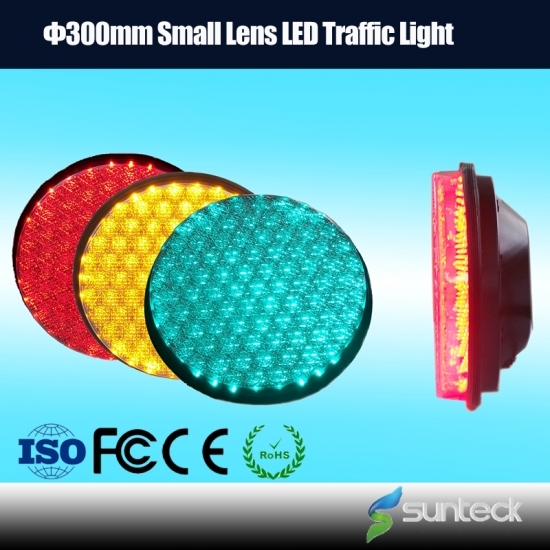

roducts type: Ф300mm Small Lens LED Traffic Light Module
Model No.: DXJD300-5-5
Module Size: Ф300mm
MOQ:10pc
|

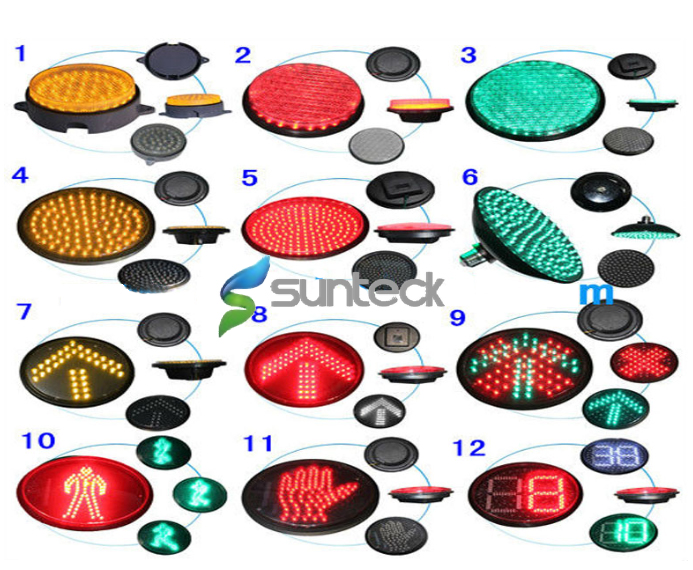

Photo |
Model |
LED Qty |
Intensity |
Wavelength |
Viewing Angle |
Power Consumption |
|||
|
L/R |
Up/Down |
||||||||
|
|
DXJD300-5-5-2A |
168pcs |
≥600cd |
625±5nm |
30° |
30° |
≤12W |
||
|
|
DXJD300-5-5-2B |
168pcs |
≥800cd |
590±5nm |
30° |
30° |
≤12W |
||
|
|
DXJD300-5-5-2C |
168pcs |
≥800cd |
505±5nm |
30° |
30° |
≤12W |
||
|
|
DXFX300-5-5-2A |
90pcs |
≥15000cd/m² |
625±5nm |
30° |
30° |
≤7W |
||
|
|
DXFX300-5-5-2B |
90pcs |
≥20000cd/m² |
590±5nm |
30° |
30° |
≤7W |
||
|
|
DXFX300-5-5-2C |
69pcs |
≥25000cd/m² |
505±5nm |
30° |
30° |
≤7W |
||
|
|
DXRX300-5-5-2C |
80pcs |
≥20000cd/m² |
625±5nm |
30° |
30° |
≤9W |
||
|
|
DXRX200-5-5-2A |
78pcs |
≥20000cd/m² |
505±5nm |
30° |
30° |
≤9W |
||
|
|
DXRX300-5-5-2B |
96pcs |
≥35000cd/m² |
505±5nm |
30° |
30° |
≤12W |
||
|
|
DXRX300-5-5-2H |
314pcs |
≥40000cd/m² |
505±5nm |
30° |
30° |
≤7W |
||
|
|
DXRX300-5-5-2F |
R80pcs G70pcs |
R≥25000cd/m² G≥35000cd/m² |
R625±5nm G505±5nm |
30° |
30° |
R≤8W G≤6W |
||
|
|
DXCD300-5-5-2B |
55pcs |
R≥12000cd/m² |
625±5nm |
30° |
30° |
≤6W |
||
|
|
DXCD300-5-5-2C |
R56/G48pcs |
R≥10000cd/m² G≥20000cd/m² |
R625±5nm G505±5nm |
30° |
30° |
R≤7W G≤7W |
||
|
|
DXFX300-5-5-2A |
54pcs |
≥1500cd/m² |
625±5nm |
30° |
30° |
≤7W |
||
|
|
DXFX300-5-5-2B |
54pcs |
≥25000cd/m² |
590±5nm |
30° |
30° |
≤7W |
||
|
|
DXFX300-5-5-2C |
54pcs |
≥35000cd/m² |
505±5nm |
30° |
30° |
≤7W |
||
|
|
DXFJ300-5-5-2A |
60pcs |
≥20000cd/m² |
625±5nm |
30° |
30° |
≤7W |
||
|
|
DXFJ300-5-5-2B |
60pcs |
≥30000cd/m² |
590±5nm |
30° |
30° |
≤7W |
||
|
|
DXFJ300-5-5-2C |
60pcs |
≥35000cd/m² |
505±5nm |
30° |
30° |
≤7W |
||
|
|
DXDJ300-5-5-2B |
70pcs |
≥25000cd/m² |
625±5nm |
30° |
30° |
≤9W |
||
|
|
DXDJ300-5-5-2A |
R70/G70pcs |
R≥25000cd/m² G≥33000cd/m² |
R625±5nm G505±5nm |
30° |
30° |
R≤9W G≤12W |
||
|
Working Voltage |
Working Temperature |
IP Code |
|||||||
|
12/24VDC; 85V-265VAC, 50/60HZ |
-40℃~+80℃ |
IP65 |
|||||||
|
|
|
|
Functions |
§ Novelty design with beautiful appearance § Low power consumption § High efficiency and brightness § Large viewing angle § Long lifespan-50,000-80,000 hours § Multi-layer sealed and waterproof § Exclusive optical lensing and good color uniformity § Long viewing distance § Keep up with CE, FCC, RoHS, GB14887-2007, IEC/EN12368 and relevant international standards-Touch screen function |
|

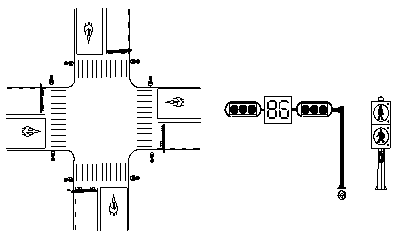

Installation Sketch |
|

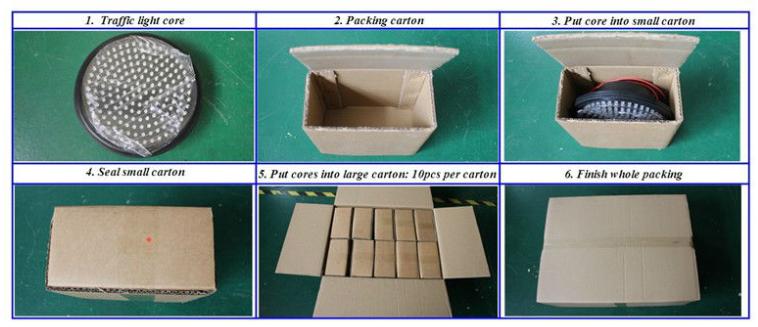

Packing |
|
Gather to pack |
||||||||
|
Model |
Housing Material |
Dim. Of Outer Carton (mm) |
Qty/Ctn |
G.W./Ctn |
N.W./Ctn |
Packing |
Wrapper |
Volume(m3) |
|
-- |
PC |
1240*330*310 |
10 |
15.24kg |
13.6kg |
Carton |
K=K Carton |
0.12 |
|

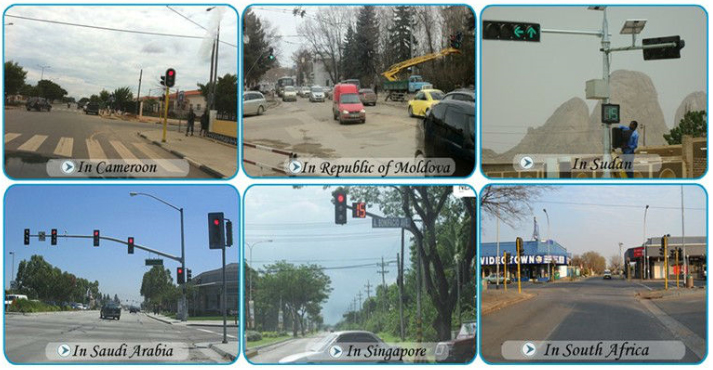

Project |
