LED DRL fog lights for Nissan Patrol Y61 1997–2013 Y62 2010–, auto spare parts for Nissan Patrol

  • CF202
  • < 40/60
  • China
  • Guangzhou
  • Products Details

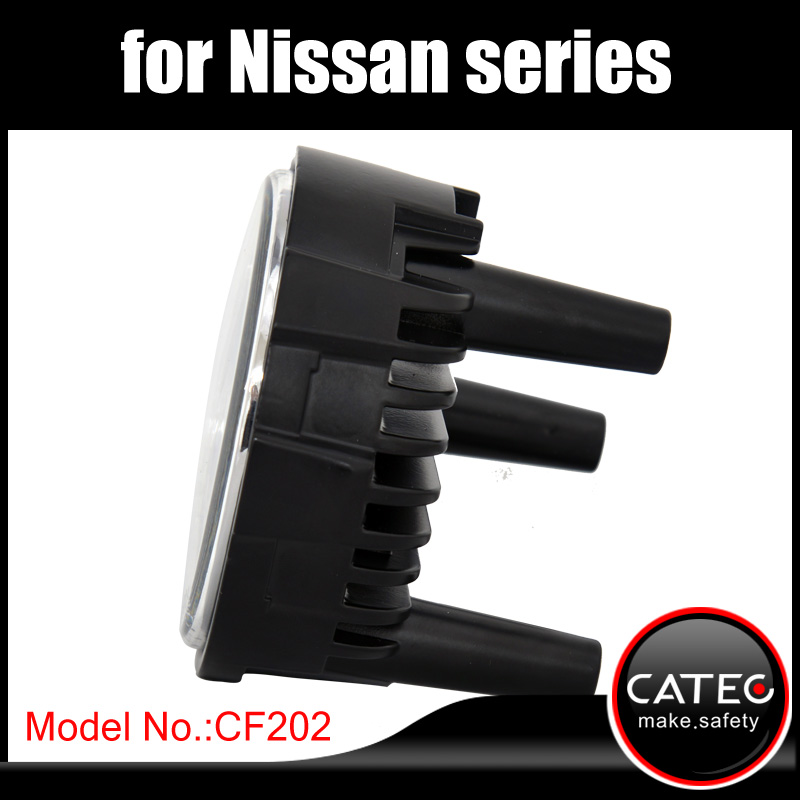

LED DRL fog lights for Nissan Patrol Y61 1997–2013 Y62 2010–present, auto spare parts for Nissan Patrol


Nissan LED DRL fog lightsNissan LED DRL fog lights

Nissan LED DRL fog lightsNissan LED DRL fog lights


car LED solution for European market




Model No.:

CF202

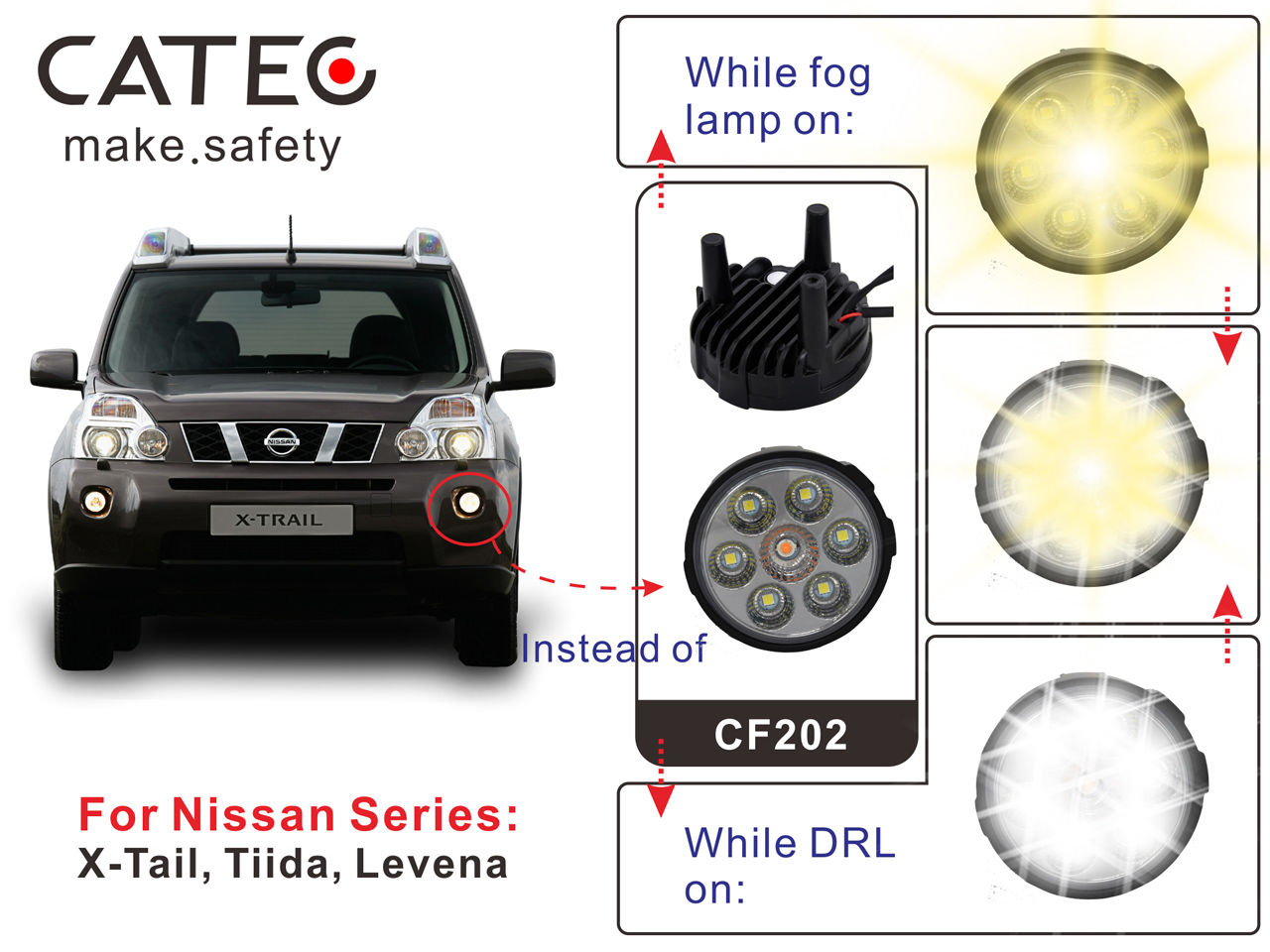

Installation effect for Nissan Patrol LED FRL fog lights

Nissan Patrol LED DRL fog lights installation



Specification for Nissan Patrol LED DRL fog lights

 Electrical Characteristics
 Working Voltage  10.0 to 16.0 V
 Working Current  ≤2.5 A  (12.0 V)
 Temperature Characteristics
 Storage Temperature  -40 to 85°C
 Working Temperature  -40 to 60°C
 LED bulbs
 LED chipset  (1 x 2.5W + 6 x 0.5W) x 2
 Optical Characteristics
 Luminous flux 180lm (fog lamp), 210lm (DRL)
 Color Temperature  2,000 to 2,300K (fog lamp) and 6,000 to 7,500K (DRL lamp)
 International Protection Level
 Degree of international protection grade  IP65 (Fully Waterproof and Dustproof)
 Package Characteristics
 Gift Box Capacity  1 pairs
 Gift Box Size  30.0 x 11.0 x 15.0 cm/ 11.8 x 4.5 x 6 inches
 Gift Box Weight  1.1 kg
 Carton Box Capacity  20 pairs
 Carton Box Size  56.5 x 31.5 x 33.0 cm (L x W x H)
 Carton Box Weight  23.5 kg


Fule saving of LED DRL daytime running lights






Features of Nissan Patrol LED DRL fog lights:



 Easy installation for Nissan Patrol car LED DRL fog lights

1. CF201 LED DRL fog light is designed with the same dimension and installation mode as the OE fog light module.It is easy to install to the car, only need to replace the original fog lights, without any damage to the car.

2. For the fog light, H11 connector is ready to plug and play to the car.

 Toyota car led DRL fog lights plug and play

 Fule saving of LED DRL daytime running lights

 Fuel Saving for Nissan Patrol LED DRL fog lights

1. The rated power consumption of OE bulb is 55W.

2. DRL with 6 piece 0.5W wihte LED is 3W, LED fog light bulb is 2.5W,  so the total power consumption for a pair is less then 11W.

 3. In Europe, the cars are force to turn on the lights in daytime. For a example as 3 hours driving per day with head lights on and with a gasoline engine,the LED DRL will cost 9.9 litres gasline per year ,and the head lights will cost 66.4 litres gasline per year. So the DRL fog lights may save about 60 litres gasline per year.



 High power LED bulbs for Nissan Patrol LED DRL fog lights

1. There is a 2.5W yellow lighting LED for fog light. And for DRL bulb are 6 piece 0.5W white lighting LED. The life time of LED is more than 30000 hours.

2. High luminous efficiency : more than 70lm/W.

 High power LED bulbs for Toyota LED DRL fog lights

 Toyota car led DRL fog lights heat sink

 Heat sink for Nissan Patrol LED DRL fog light

Aluminum heat sink keep the LEDs' temperature rising less than 15°C;.It will delay LED decay time.



 PC lens for Nissan Patrol LED DRL fog lights

1.The lens is made by special PC, it can work under the high temperature of 105 degrees without deformation.

2. PC material is not easy to broken as glass, when it receives a an impact by stone, it will leave only a white spot.

 PC lens for Toyota LED DRL fog lights




LED DRL fog light, LED DRL fog lamp





Applied for Nissan Patrol car models

Nissan Patrol Y61 Y62 1997–present

Nissan Patrol Fifth generation (Y61; 1997–2013)

Nissan Patrol Sixth generation (Y62; 2010–present)

Nissan Safari (Japan)

Nissan Patrol GR (LHD)

Nissan Patrol GU (RHD)

Nissan Patrol Super Safari (Philippines)

Nissan Patrol Royale (Philippines)

Infiniti QX56 (North America)

Nissan Patrol 3-door SUV

Nissan Patrol 5-door SUV

Nissan Patrol 2-door Pickup

Nissan Patrol 4-door Pickup

Nissan Patrol 4.5 L TB45E I6

Nissan Patrol 4.8 L TB48DE I6

Nissan Patrol 2.8 L RD28ETi diesel

Nissan Patrol 3.0 L ZD30DDTi diesel

Nissan Patrol 4.2 L TD422 diesel

Nissan Patrol 4.2 L TD42T3 diesel

Nissan Patrol 5.6 L VK56VD V8

Nissan Patrol 5.6 L VK56DE V8

Nissan Patrol  XE, SE, LE, and City

Nissan Patrol ST-L, Ti, and Ti-L

 LED DRL fog light compatible Nissan car models 1

Other CATEC's OE-fit LED DRL daytime running light models:

More CATEC LED DRL daytime running light models



Why select CATEC's LED DRL daytime running lights?

      We, CATEC are specialized in auto lighting system and strong in R&D. By now, we have more than 70 special LED DRL daytime running light models. We keep launching 2 new models per month.
